PULLING FORCE OF CAT MINE VEHICLES (LBS.) | |
D-8 | 139,000 | 785D | 187,300 |
D-9 | 161,000 | 793F | 230,000 |
D-10 | 225,000 | 795F | 295,600 |
D-11 | 330,600 | 797F | 340,000 |
Stock Number | Straight-Line Break Strength SLBS (Lbs.) | Straight-Line Break Strength SLBS (t) | WLL @5:1 (Lbs.) | WLL @5:1 (t) | WLL @3:1 (Lbs.) | WLL @3:1 (t) | Eye Length (Inches) | Eye Diameter (Inches) with SX | Rope Diameter (Inches) | Rope Diameter (MM) | Standard Length (Feet) |
TR-EN-EESX12-UHMPE-5/8-T-O | 84,810 | 38.46 | 16962 | 7.69 | 28270 | 12.8 | 12 | 7/8 | 5/8 | 16 | 20 |
TR-EN-EESX12-UHMPE-3/4-T-O | 113,025 | 51.26 | 22605 | 10 | 37675 | 17 | 12 | 1-1/8 | 3/4 | 19 | 20 |
TR-EN-EESX12-UHMPE-7/8-T-O | 152,790 | 69.3 | 30558 | 14 | 50930 | 23 | 18 | 1-1/4 | 7/8 | 22 | 20 |
TR-EN-EESX18-UHMPE-1-T-O | 173,250 | 78.58 | 34650 | 16 | 57750 | 26 | 18 | 1-1/2 | 1 | 25 | 20 |
TR-EN-EESX18-UHMPE-1-1/4-T-O | 259,050 | 117.5 | 51810 | 24 | 86350 | 39 | 18 | 1-3/4 | 1-1/4 | 32 | 30 |
TR-EN-EESX24-UHMPE-1-1/2-T-O | 354,750 | 160.9 | 70950 | 32 | 118250 | 54 | 24 | 2 | 1-1/2 | 38 | 30 |
TR-EN-EESX24-UHMPE-1-5/8-T-O | 404,250 | 183.3 | 80850 | 37 | 134750 | 61 | 24 | 2-1/8 | 1-5/8 | 41 | 30 |
TR-EN-EESX24-UHMPE-1-3/4-T-O | 502,400 | 227.8 | 100480 | 46 | 167467 | 76 | 24 | 2-1/4 | 1-3/4 | 44 | 30 |
TR-EN-EESX24-UHMPE-2-T-O | 610,335 | 276.8 | 122067 | 55 | 203445 | 92 | 24 | 2-1/2 | 2 | 50 | 30 |
TR-EN-EESX30-UHMPE-2-1/4-V-O | 775,665 | 351.8 | 155133 | 70 | 258555 | 117 | 30 | 2-3/4 | 2-1/4 | 57 | 30 |
TR-EN-EESX36-UHMPE-2-1/2-V-O | 939,510 | 426.1 | 187902 | 85 | 313170 | 142 | 36 | 3 | 2-1/2 | 63 | 30 |
TR-EN-EESX36-UHMPE-2-3/4-V-O | 1,152,360 | 523 | 230472 | 105 | 384120 | 174 | 36 | 3-1/4 | 2-3/4 | 68 | 30 |
TR-EN-EESX36-UHMPE-3-V-O | 1,351,350 | 612.9 | 270270 | 123 | 450450 | 204 | 36 | 3-1/2 | 3 | 76 | 30 |
TR-EN-EESX36-UHMPE-3-1/4-V-O | 1,551,000 | 703.5 | 310200 | 141 | 517000 | 235 | 36 | 3-3/4 | 3-1/4 | 82 | 30 |
TR-EN-EESX36-UHMPE-3-1/2-V-O | 1,828,200 | 829.2 | 365640 | 166 | 609400 | 276 | 36 | 4 | 3-1/2 | 89 | 30 |
*Common sizes are shown, however custom eye sizes, lengths and Tow / Recovery Rope ratings are readily available.

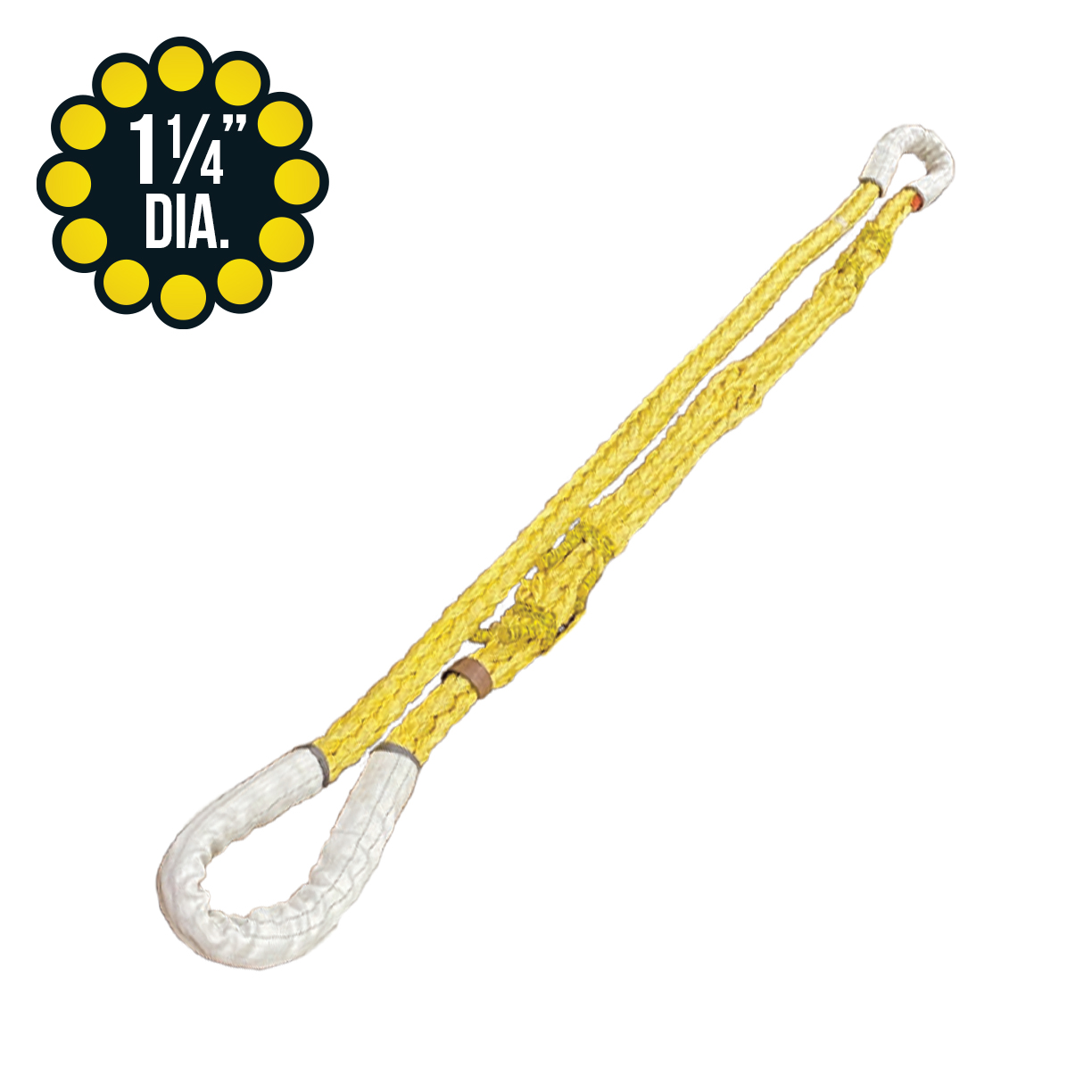

Tubular Cordura® Sleeve (shown above) is standard, Velcro Sleeve available upon request
1. COMPLETE STOCK NUMBER 2. EYE LENGTH: Unless otherwise specified Eye Lengths will be as shown in the chart above. | 3. ROPE DIAMETER: Unloaded diameter of the bare rope. Splices are approximately two times larger diameter. 4. COVER (Body Sleeve): Style: V for Velcro / T for Tubular (standard) Color: B for Black / O for Orange (standard) (Ask a sales representative about other available options). 5. RECOVERY ROPE LENGTH: Unless otherwise specified: Lengths are measured as bearing to bearing. |
All goods are custom made and Non-returnable. Any return must be negotiated, include a return authorization number and will be subject to a restocking fee.
Warning See 'Product Resources' tab above for Warning Information PROP 65 WARNING
Products made and/or supplied by Lift-It® Manufacturing can expose you to chemicals including Chromium, Formaldehyde, Cadmium, Lead, Lead based compounds DEHP, Nickel, Nickel compounds, Acrylamide, Crystalline Silica, Triethanolamine, N-Methyl-2-pyrrolidone, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to: www.P65Warnings.ca.gov
>> Click here for more details <<
Products specifications
Made in USA | Yes |
Diameter (inches) | 1-1/4" |
Eye Length (inches) | 18" |
SLBS (Lbs.) | 259,050 |
SLBS (t) | 117.5 |
WLL @ 5:1 (Lbs.) | 51,810 |
WLL @ 5:1 (t) | 24 |
WLL @ 3:1 (Lbs.) | 86,350 |
WLL @ 3:1 (t) | 39 |
